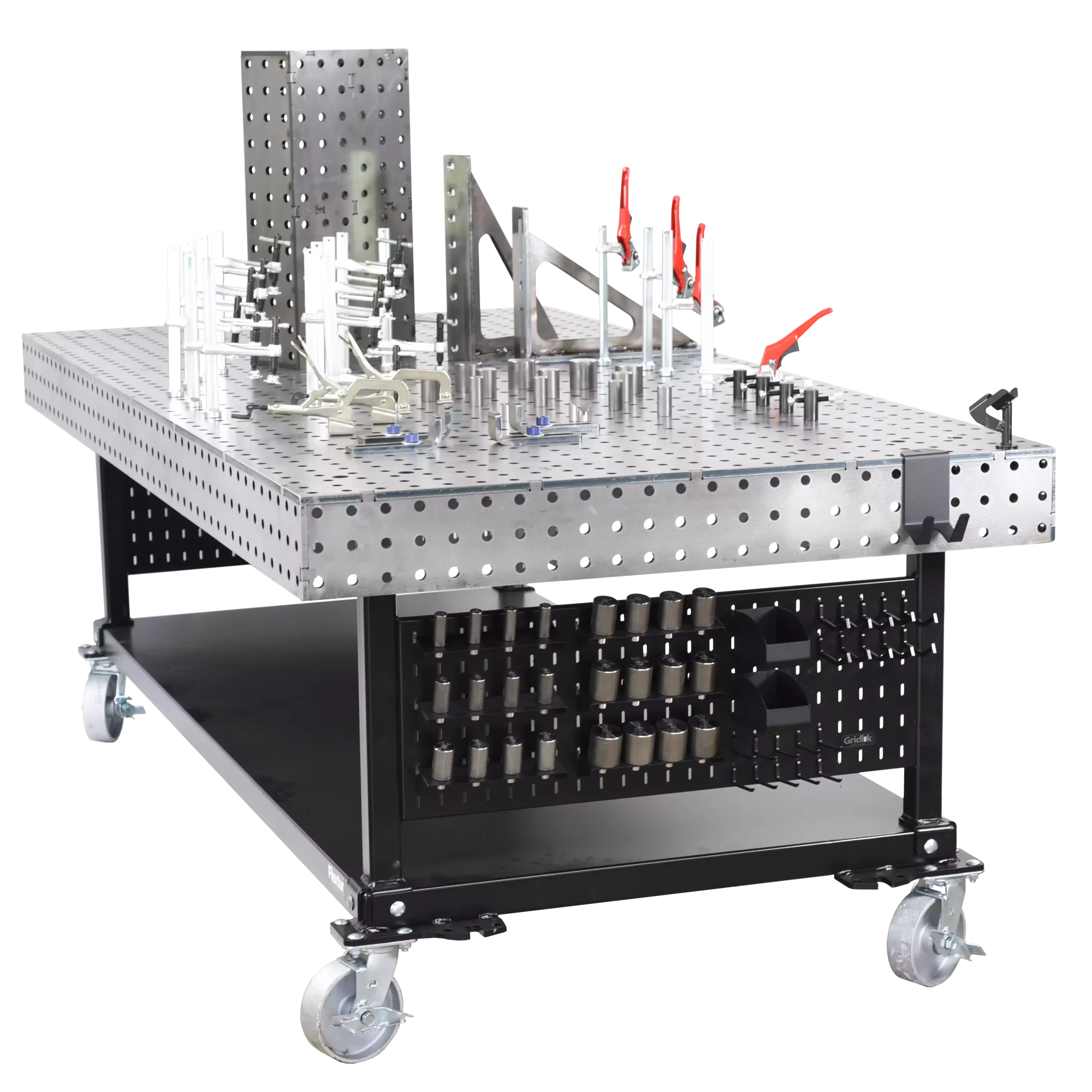

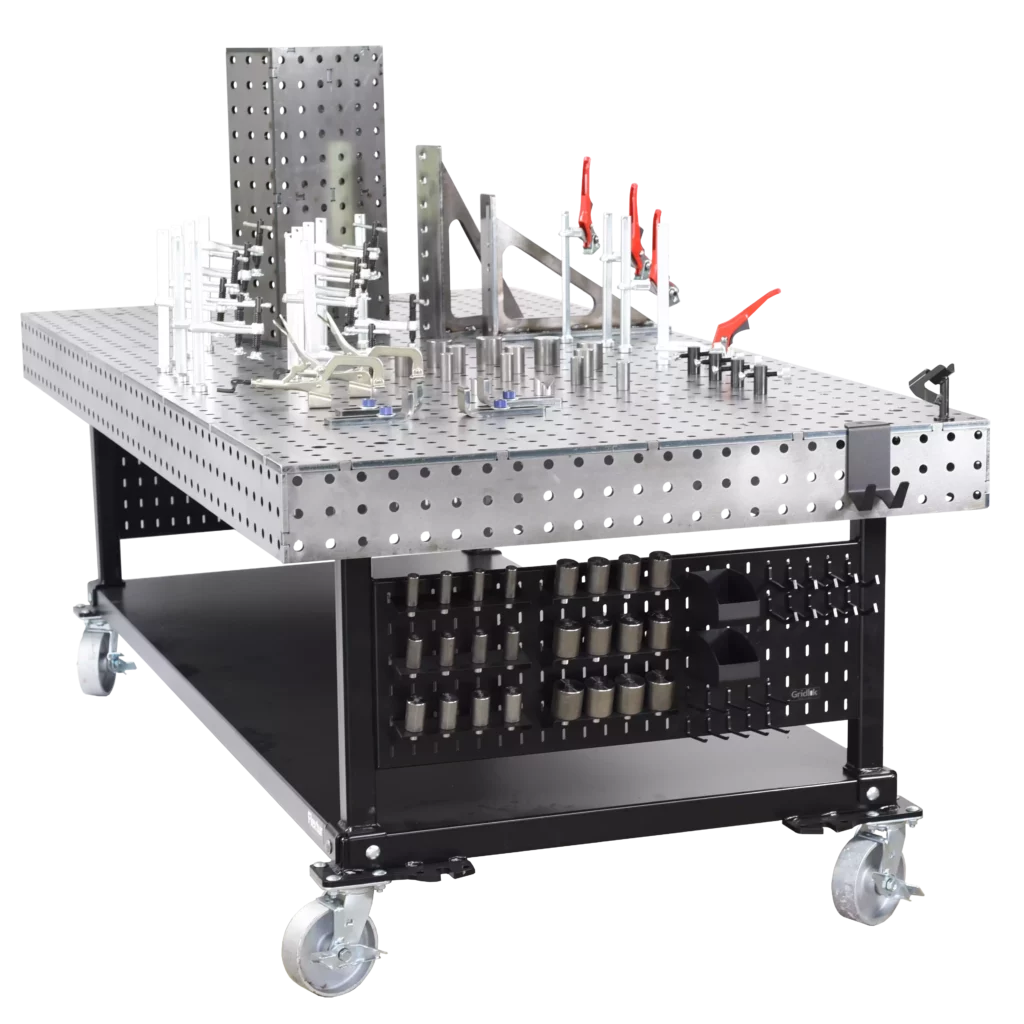

48″ x 96″ x 6″ Welding Table with 95 Piece Fixturing Kit

Flextur Welding Table and Accessories

This Package includes a Flextur Welding Table 48″l x 96″w x 35″h, with 1/2″ top supported by 3/8″ x 5″ struts every 16″, Flextur Tool Board panels, a full bottom shelf, casters, and a 2,000 lbs. capacity. Surface flatness is +/- .015″ over the 32 square feet area. All 48″ Tables come equipped with heavy-duty swiveling lockable 2″W x 6″H casters. Changeover is easy and quick with movable 16mm locator pin in a 2″ grid pattern. Skirting along all sides has the same hole configuration and gives the flexibility to extend your table in any direction, up to 24″, with a Flextur Fixture Block for larger Weldments. Well suited for larger jobs, Flextur Welding Tables will improve accuracy and greatly reduce set up time for complicated Weldments. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. Onboard steel Flextur tool board panels keep tools organized and within easy reach. Base requires assembly but all welding table tops ship assembled.

In addition, you get a Flextur 95-piece Fixturing Kit for Welding. Use with Flextur Welding Tables and tables with 16mm holes. This Extensive 95 Piece Fixturing Kit has all of the clamps and accessories you’ll need to be productive with your table. This extremely capable kit will have you covered no matter the task at hand. Recommended for Flextur 36″ x 72″, 48″ x 48″ and 48″ x 96″ Welding tables. All of the accessories included in this kit are also sold separately. A complete line of Flextur accessories is available to outfit your table. American Made in Dalton, Ohio U.S.A.

95 Piece Fixturing Kit Includes:

  • .75″ Locator Pin (4pk)
  • 1.0″ Locator Pin (8pk)
  • 1.25″ Locator Pin (4pk)
  • 1.5″ Locator Pin (8pk)
  • 1.75″ Locator Pin (4pk)
  • 2.0″ Locator Pin (8pk)
  • Locator Stop (4pk)
  • 5/8″ Vertical Clamp (12pk)
  • 5/8″ Horizontal Clamp (4pk)
  • Inserta Pliers Clamp (2pk)
  • Ratchet Handle Clamp (4pk)
  • 5/8″ Clamp Pin (4pk)
  • 4″ Tool Cradle Hook (10pk)
  • 3″ Standard Hook (10pk)
  • 3″ x 5″ Bin (2pk)
  • Weld Gun Holder
  • 90° V-Block (2pk)
  • 90° Angle Bracket (2pk)
  • 12″ x 24″ Fixture Block
  • Weld Table Tool Holder
Dimensions
48"L x 96"W x 35"H
Part Number
71500006
Weight
1,702 lbs
Capacity
4,000 lbs
USA Made

USA Made Dalton, Ohio

MSRP: $12,449.00
